KOSO LCD METER - STREET VERSION

$239.95
SKU:
BA022W10
Quantity:

Product Description

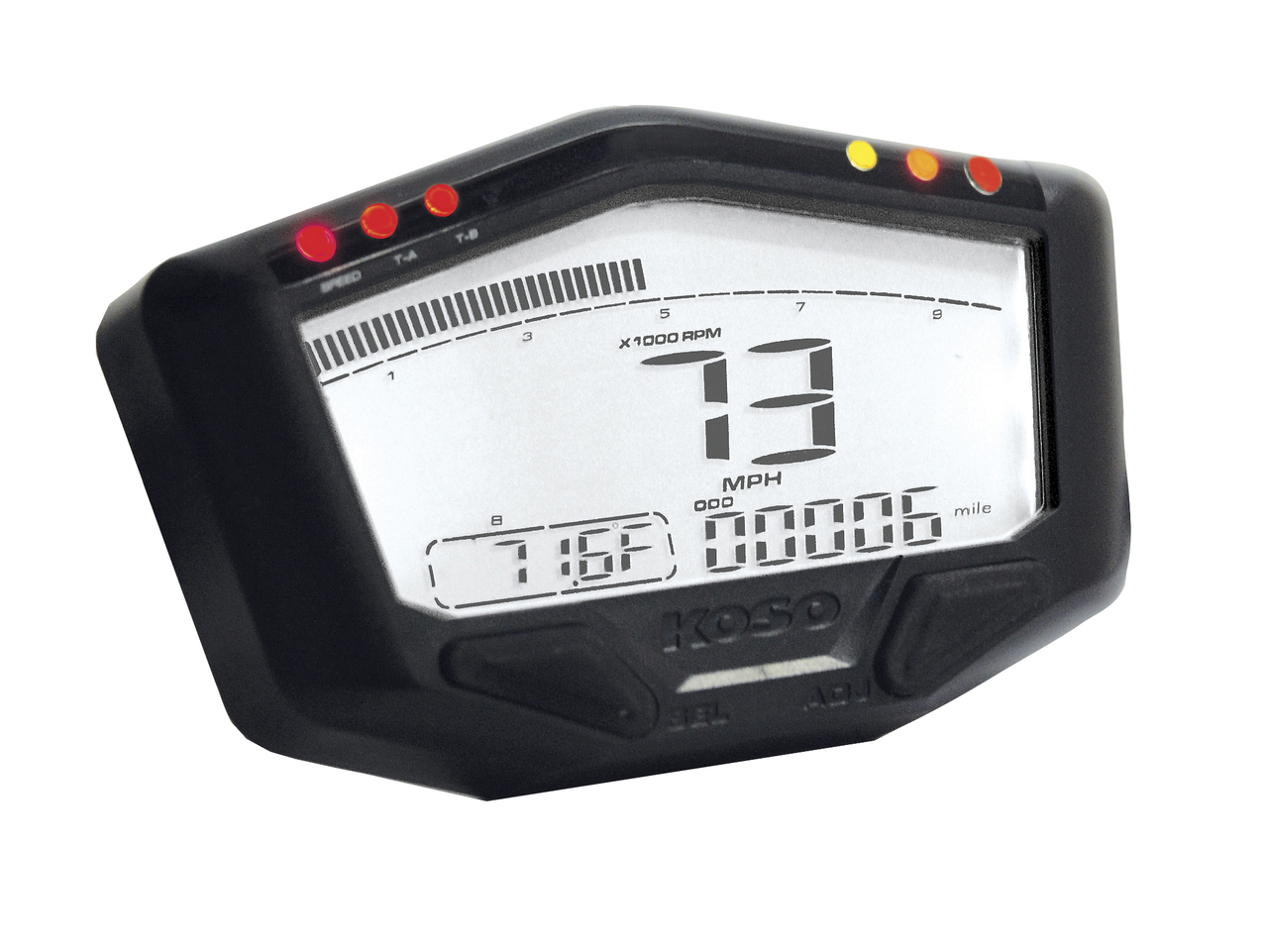

The DB-02R LCD Meter was especially made to fit your street or race bike needs. Its white back light make it very easy to read at night even at high speed. Its great shape and nice LCD display make’s it the perfect gauge to get for your street or race bike. The changeable RPM scale allow this gauge to fit on about any engine applications. This instrument also feature a 3 stages shift light to allow you to shift your gears perfectly. Beside those great functions, the DB-02 features: Speed, odometer, trip meter, RPM, inner battery level, temperature, hour meter and more.

Speedometer Display range : 0~360km/h (0~225MPH)
Display unit : km/h or MPH
Display internal < 0.5 Second
Odometer Display range : 0~99999 km (mile), reset automatically after 0~99999 km (mile)
Display unit : 1 km (mile)
Trip meter A/B Display range : 0~999.9 km (mile), reset automatically after 0~999.9 km (mile)
Display unit : 0.1 km (mile)
Speeding warning light Setting range : 30~360 km/h (19~225 MPH)
Setting unit : 1 km/h (MPH)
Top speed record Display range : 0~360 km/h (0~225 MPH)
Tire circumference Setting range : 300 2,500 mm
Setting unit : 1 mm
Sensor point : 6
Digital Tachometer Display range : 20,000 RPM
Display unit : 10 RPM
Bar graph tachometer
(60 segment bar graph)
Display range : 10,000 RPM
Display unit : 166 RPM to each segmentDisplay range : 15,000 RPM
Display unit : 250 RPM to each segmentDisplay range : 20,000 RPM
Display unit : 333 RPM to each segment
RPM shift light Display range : 5,000~20,000
Display unit : 100 RPM
Clock 24H
Pre-shift light A/B Display range : -500~ -5,000 before the shift light
Display unit : 100 RPM
Max. RPM record Display range : 0~20,000 RPM
RPM input pulse Display range : 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
Hour meter Display range : 0~999.9 H
Display unit : 0.1H (6S)
Thermometer Display unit : ºC or ºF
Thermometer A/B Display range : 0~250ºC (32~482ºF)
Display unit : 0.1ºC (ºF)
Display internal <0.5 second
Temperature alarm A/B Display range : 60~250ºC (140~482ºF)
Display unit : 1ºC (ºF)
Top temperature record Display range : 0~250ºC (32~482ºF)
Fuel Meter Dispaly range : 0~100%
Setting range : 100 Ω, 510 Ω, no display
Insufficient fuel warning Setting range : 10~50%
Setting unit : 10%
Volt meter Display range : DC 0~18.0 V
Display unit : DC 0.1 V
Target speed timer Setting range : 0~360km/h (0~225MPH)
Setting unit : 5 km/h (MPH)
Target distance timer Setting range : 1/32~30/32 mile (50~1,500 M)
Setting unit : 1/32 mile (50M)
Top speed timer The record including :



  1. Speed : 0~360 km/h (0~225 MPH)
  2. Distance : 0~999 M (0~3,280 feet)
  3. RPM : 0~20,000 RPM
  4. Timer : 0~9’59″99 second
Supply voltage DC 12 V
Effective temperature range  -10~ 60ºC (14~ 140ºF)
Meter standard JIS D 0203S2
Meter Size (W x L x H) 100 x 60 x 20mm
Meter weight ±200G
Indicator lights
  • Speeding (Red)
  • Temperature alarm A/B (Red)
  • RPM shift light A (Yellow)
  • RPM shift light B (Amber)
  • RPM shift light (Red)
